DUNE
Additional Finishes

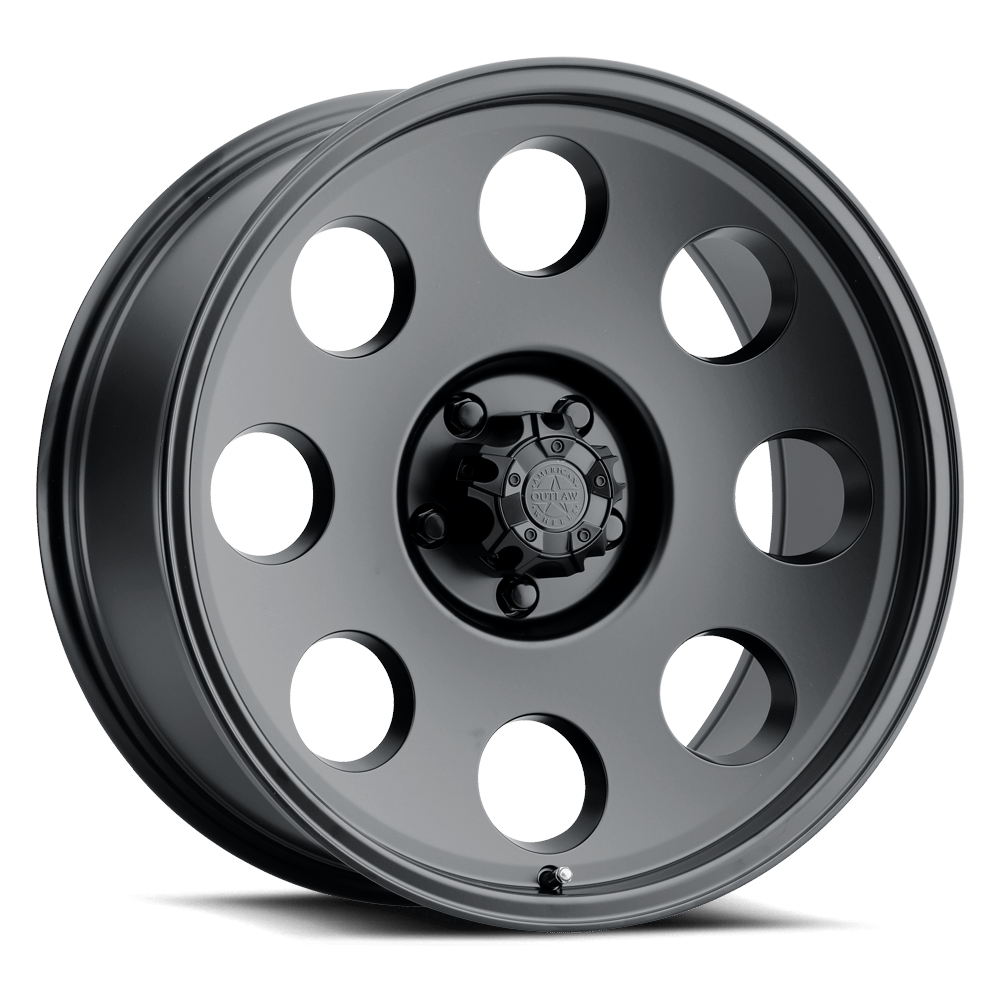

Satin Black

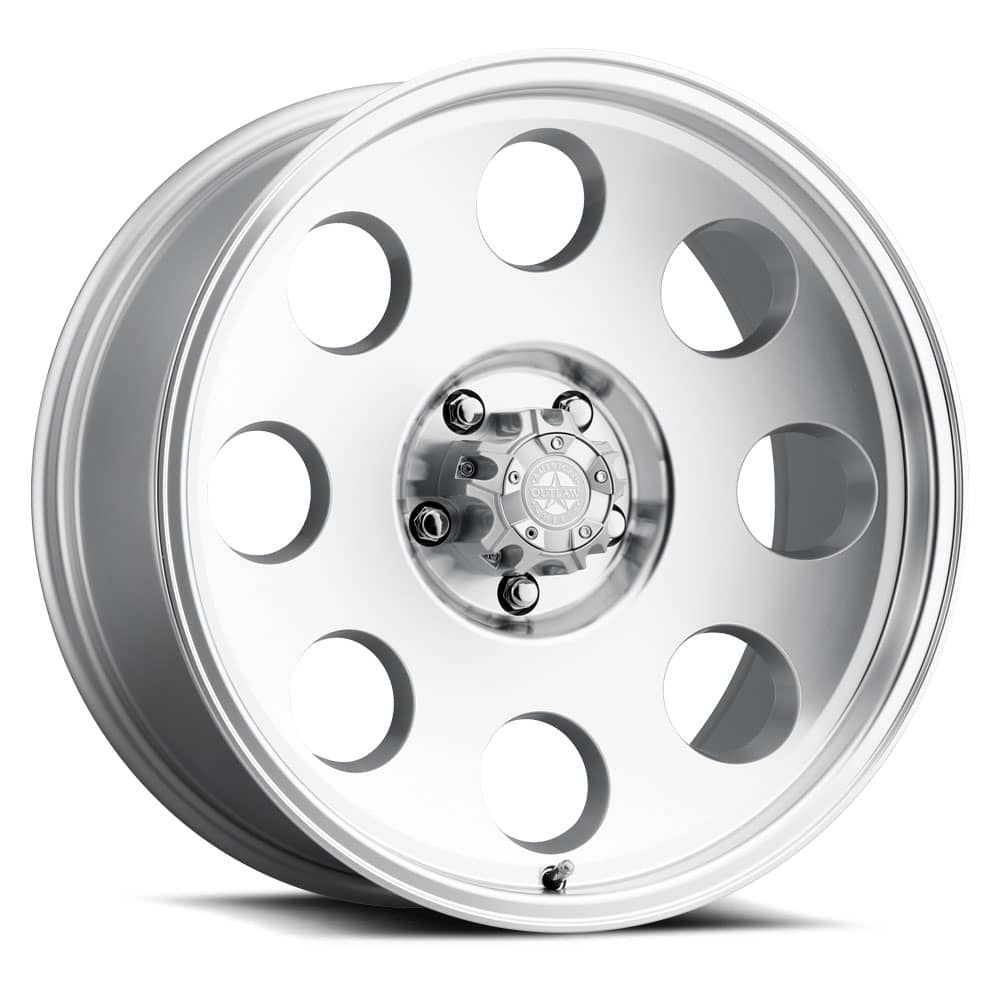

Finish : Satin Black & Machined Face/ Silver 5/6/8 LUG
Available Sizes
15″x 7″
16″ x 7″
17″ x 8.5″
20″ x 9″
Wheel Specifications
| PART# | SIZE | BOLT PATTERN | OFFSET | BORE | LOAD RATING | WEIGHT | FINISH | CAP PART# |
|---|---|---|---|---|---|---|---|---|
| 999-5765B | 15" x 7" | 5x114.3 | 0 | 83.06 | 2850 | 17.6 | Satin Black | CAP1005~80827 |
| 999-5773B | 15" x 7" | 5x127 | 0 | 83.06 | 2850 | 17.6 | Satin Black | CAP1005~80827 |
| 999-5783B | 15" x 7" | 6x139.7 | 0 | 108 | 2850 | 17.6 | Satin Black | CAP1005~80827 |
| 999-6783B | 16" x 7" | 6x139.7 | 0 | 108 | 4000 | 19.8 | Satin Black | CAP1005~80827 |
| 999-7873B | 17" x 8.5" | 5x127 | 0 | 83.06 | 2850 | 24.42 | Satin Black | CAP1005~80827 |
| 999-7865B | 17" x 8.5" | 5x114.3 | 0 | 83.06 | 2850 | 24.42 | Satin Black | CAP1005~80827 |
| 999-7883B | 17" x 8.5" | 6x139.7 | 0 | 106.1 | 2850 | 24.42 | Satin Black | CAP1005~80827 |
| 999-2973B | 20" x 9" | 5x127 | 0 | 83.06 | 3650 | 33.22 | Satin Black | CAP1005~80827 |
| 999-2985B | 20" x 9" | 5x139.7 | 0 | 108 | 3650 | 33.22 | Satin Black | CAP1005~80827 |
| 999-2983B | 20" x 9" | 6x139.7 | 0 | 106.1 | 3650 | 33.22 | Satin Black | CAP1005~80827 |
| 999-2981B | 20" x 9" | 8x165.1 | 0 | 125.2 | 3650 | 33.22 | Satin Black | CAP1005~80827 |
| 999-2970B | 20" x 9" | 8x170 | 0 | 125.2 | 3650 | 33.22 | Satin Black | CAP1005~80827 |
| 999-2980B | 20" x 9" | 8x180 | 0 | 124.3 | 3650 | 33.22 | Satin Black | CAP1006~80828 |
| 999-5783M | 15" x 7" | 6x139.7 | 0 | 108 | 2850 | 17.6 | Silver w/ Machined Face | CAP1009~80831 |
| 999-6783M | 16" x 7" | 6x139.7 | 0 | 108 | 4000 | 19.8 | Silver w/ Machined Face | CAP1006~80828 |
| 999-7873M | 17" x 8.5" | 5x127 | 0 | 83.06 | 2850 | 24.2 | Silver w/ Machined Face | CAP1007~80829 |
| 999-7865M | 17" x 8.5" | 5x114.3 | 0 | 83.06 | 2850 | 24.2 | Silver w/ Machined Face | CAP1008~80830 |
| 999-7883M | 17" x 8.5" | 6x139.7 | 0 | 106.1 | 2850 | 24.2 | Silver w/ Machined Face | CAP1008~80830 |
| 999-2973M | 20" x 9" | 5x127 | 0 | 83.06 | 3650 | 33.22 | Silver w/ Machined Face | CAP1008~80830 |
| 999-2985M | 20" x 9" | 5x139.7 | 0 | 108 | 3650 | 33.22 | Silver w/ Machined Face | CAP1008~80830 |
| 999-2983M | 20" x 9" | 6x139.7 | 0 | 106.1 | 3650 | 33.22 | Silver w/ Machined Face | CAP1008~80830 |
| 999-2981M | 20" x 9" | 8x165.1 | 0 | 125.2 | 3650 | 33.22 | Silver w/ Machined Face | CAP1008~80830 |
| 999-2970M | 20" x 9" | 8x170 | 0 | 125.2 | 3650 | 33.22 | Silver w/ Machined Face | CAP1008~80830 |
| 999-2980M | 20" x 9" | 8x180 | 0 | 124.3 | 3650 | 33.22 | Silver w/ Machined Face | CAP1008~80830 |
